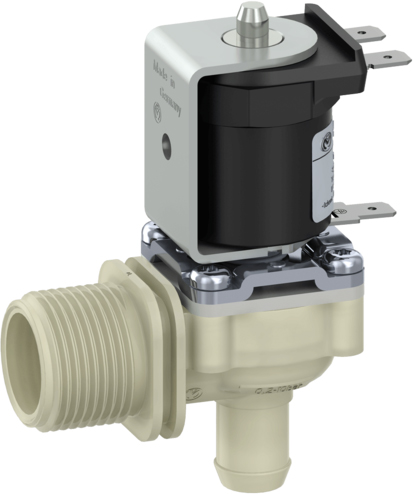

« Terug Magneetventiel, kunststof, direct gestuurd, NC, DN10, enkel haaks, draad / Tule
- Werking: 2/2-weg
- Bouw: enkel haaks
- Functie: Normaal gesloten (NC)
- Materiaal behuizing: Kunststof
- Materiaal binnenwerk: RVS
- Doorlaat: DN10 / 10mm
- Werkdruk: 0 - 60 mbar
- Afdichting membraan: VMQ (EPDM)
- Temperatuur medium: max. 98°C
- Temperatuur omgeving: max. 50°C
- Aansluiting: G3/4” buitendraad x 13,5 mm Tule haaks
- Magneetspoel: MS.006, MS.024, MS.025
- Materiaal spoel: PBT, PET, Epoxy
- Sturing: Direct gestuurd
- Connector: EN 60730
- Voltage/wisselspanning:
220-240V AC
120V AC
42V AC
24V AC
24V DC
- Vermogen: 8,5W
- Veiligheidstype: IP00 tot IP68
- Type: Magneetventiel
- Merk: A.u.K. Müller
