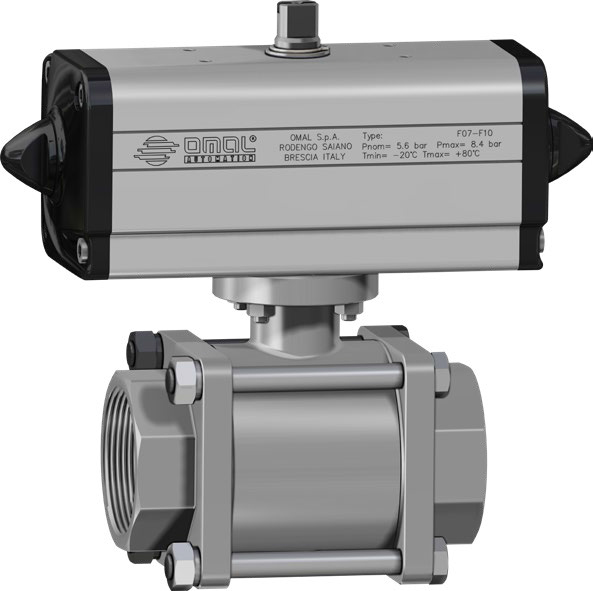

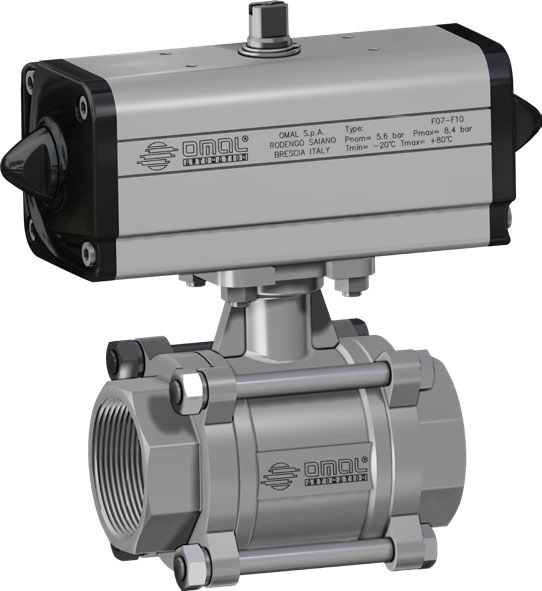

Pneumatische Kogelkraan, 2-weg, RVS, draad of lasaansluiting, 3-delig, dubbelwerkende aandrijving (DAN)

  • Aansluiting: Binnendraad of lasaansluiting
  • Uitvoering: Tweeweg
  • Materiaal: RVS
  • Maat: DN8 t/m DN100
  • Druk: PN 63 bar
  • Temperatuur: -20°C t/m +180°C
  • Speciaal: 3-delig
  • Actuator: Pneumatische dubbelwerkend (DAN)
  • Merk: Omal
Artikel Aansluiting Druk Actuator Kogelkraan Hoogte Lengte Montage
DG424H402 DN8 1/4” 63 bar DAN0015411S V424H402 116.8 159 KCF042649
DG424H403 DN10 3/8” 63 bar DAN0015411S V424H403 116.8 159 KCF042649
DG424H404 DN15 1/2” 63 bar DAN0015411S V424H404 116.8 159 KCF042649
DG424H405 DN20 3/4” 63 bar DAN0015411S V424H405 119.8 159 KCF042649
DG424H406 DN25 1” 63 bar DAN0030411S V424H406 132.8 174.2 KCF042454
DG424H407 DN32 1.1/4" 63 bar DAN0030411S V424H407 137.8 174.2 KCF042454
DG424H408 DN40 1.1/2" 63 bar DAN0045412S V424H408 154.8 188.5 KCF042455
DG424H409 DN50 2” 63 bar DAN0060412S V424H409 169 198 KCF052456
DG424H410 DN65 2.1/2" 63 bar DAN0120411S V424H410 208.6 244.1 KCF073288
DG424H411 DN80 3” 63 bar DAN0240411S V424H411 254.7 313.6 KCF102734
DG424H412 DN100 4” 63 bar DAN0360411S V424H412 292 339.3 KCF105285
DG424H752 DN8 1/4” 63 bar DAN0015411S V424H752 116.8 159 KCF042649
DG424H753 DN10 3/8” 63 bar DAN0015411S V424H753 116.8 159 KCF042649
DG424H754 DN15 1/2” 63 bar DAN0015411S V424H754 116.8 159 KCF042649
DG424H755 DN20 3/4” 63 bar DAN0015411S V424H755 119.8 159 KCF042649
DG424H756 DN25 1” 63 bar DAN0030411S V424H756 132.8 174.2 KCF042454
DG424H757 DN32 1.1/4" 63 bar DAN0030411S V424H757 137.8 174.2 KCF042454
DG424H758 DN40 1.1/2" 63 bar DAN0045412S V424H758 154.8 188.5 KCF042455
DG424H759 DN50 2” 63 bar DAN0060412S V424H759 169 198 KCF052456
DG424H772 DN8 1/4” 63 bar DAN0015411S V424H772 116.8 159 KCF042649
DG424H773 DN10 3/8” 63 bar DAN0015411S V424H773 116.8 159 KCF042649
DG424H774 DN15 1/2” 63 bar DAN0015411S V424H774 116.8 159 KCF042649
DG424H775 DN20 3/4” 63 bar DAN0015411S V424H775 119.8 159 KCF042649
DG424H776 DN25 1” 63 bar DAN0030411S V424H776 132.8 174.2 KCF042454
DG424H777 DN32 1.1/4" 63 bar DAN0030411S V424H777 137.8 174.2 KCF042454
DG424H778 DN40 1.1/2" 63 bar DAN0045412S V424H778 154.8 188.5 KCF042455
DG424H779 DN50 2” 63 bar DAN0060412S V424H779 169 198 KCF052456
