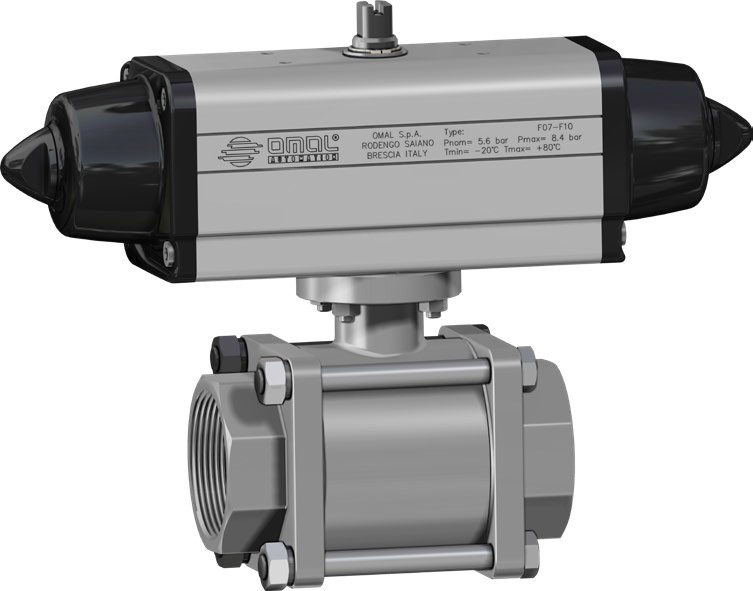

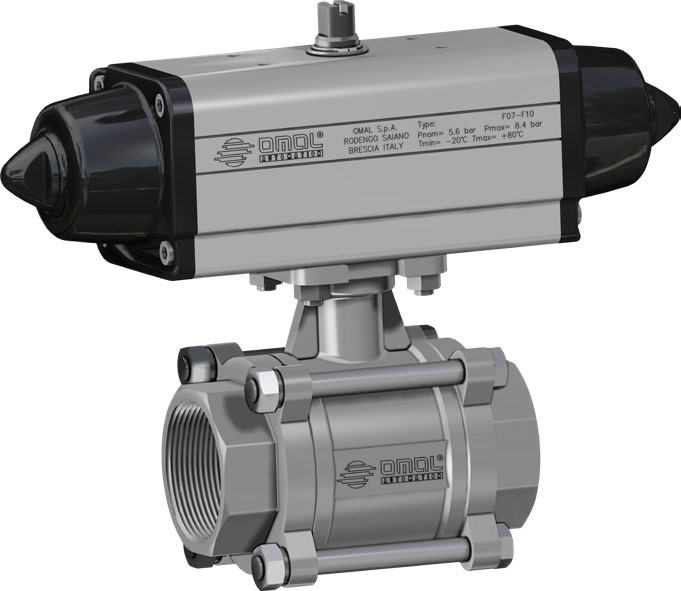

Pneumatische Kogelkraan, 2-weg, RVS, draad of lasaansluiting, 3-delig, enkelwerkende aandrijving (SRN)

  • Aansluiting: Binnendraad of lasaansluiting
  • Uitvoering: Tweeweg
  • Materiaal: RVS
  • Maat: DN8 t/m DN100
  • Druk: PN 63 bar
  • Temperatuur: -20°C t/m +180°C
  • Speciaal: 3-delig
  • Actuator: Pneumatische enkelwerkend (SRN)
  • Merk: Omal
Artikel Aansluiting Druk Actuator Kogelkraan Hoogte Lengte Montage
SG424H402 DN8 1/4” 63 bar SRN0015401S V424H402 122.8 233.2 KCF042649
SG424H403 DN10 3/8” 63 bar SRN0015401S V424H403 122.8 233.2 KCF042649
SG424H404 DN15 1/2” 63 bar SRN0015401S V424H404 122.8 233.2 KCF042649
SG424H405 DN20 3/4” 63 bar SRN0015401S V424H405 125.8 233.2 KCF042649
SG424H406 DN25 1” 63 bar SRN0030402S V424H406 144 258.8 KCF052731
SG424H407 DN32 1.1/4” 63 bar SRN0030402S V424H407 150 258.8 KCF052731
SG424H408 DN40 1.1/2” 63 bar SRN0053401S V424H408 174.8 304.2 KCF072732
SG424H409 DN50 2” 63 bar SRN0060401S V424H409 187.6 338.5 KCF072732
SG424H410 DN65 2.1/2” 63 bar SRN0120401S V424H410 242.7 409.6 KCF105284
SG424H411 DN80 3” 63 bar SRN0240401S V424H411 279 520.5 KCF122735
SG424H412 DN100 4” 63 bar SRN0360401S V424H412 322 613 KCF125286
SG424H752 DN8 1/4” 63 bar SRN0015401S V424H752 122.8 233.2 KCF042649
SG424H753 DN10 3/8” 63 bar SRN0015401S V424H753 122.8 233.2 KCF042649
SG424H754 DN15 1/2” 63 bar SRN0015401S V424H754 122.8 233.2 KCF042649
SG424H755 DN20 3/4” 63 bar SRN0015401S V424H755 125.8 233.2 KCF042649
SG424H756 DN25 1” 63 bar SRN0030402S V424H756 144 258.8 KCF052731
SG424H757 DN32 1.1/4” 63 bar SRN0030402S V424H757 150 258.8 KCF052731
SG424H758 DN40 1.1/2” 63 bar SRN0053401S V424H758 174.8 304.2 KCF072732
SG424H759 DN50 2” 63 bar SRN0060401S V424H759 187.6 338.5 KCF072732
SG424H772 DN8 1/4” 63 bar SRN0015401S V424H772 122.8 233.2 KCF042649
SG424H773 DN10 3/8” 63 bar SRN0015401S V424H773 122.8 233.2 KCF042649
SG424H774 DN15 1/2” 63 bar SRN0015401S V424H774 122.8 233.2 KCF042649
SG424H775 DN20 3/4” 63 bar SRN0015401S V424H775 125.8 233.2 KCF042649
SG424H776 DN25 1” 63 bar SRN0030402S V424H776 144 258.8 KCF052731
SG424H777 DN32 1.1/4” 63 bar SRN0030402S V424H777 150 258.8 KCF052731
SG424H778 DN40 1.1/2” 63 bar SRN0053401S V424H778 174.8 304.2 KCF072732
SG424H779 DN50 2” 63 bar SRN0060401S V424H779 187.6 338.5 KCF072732
