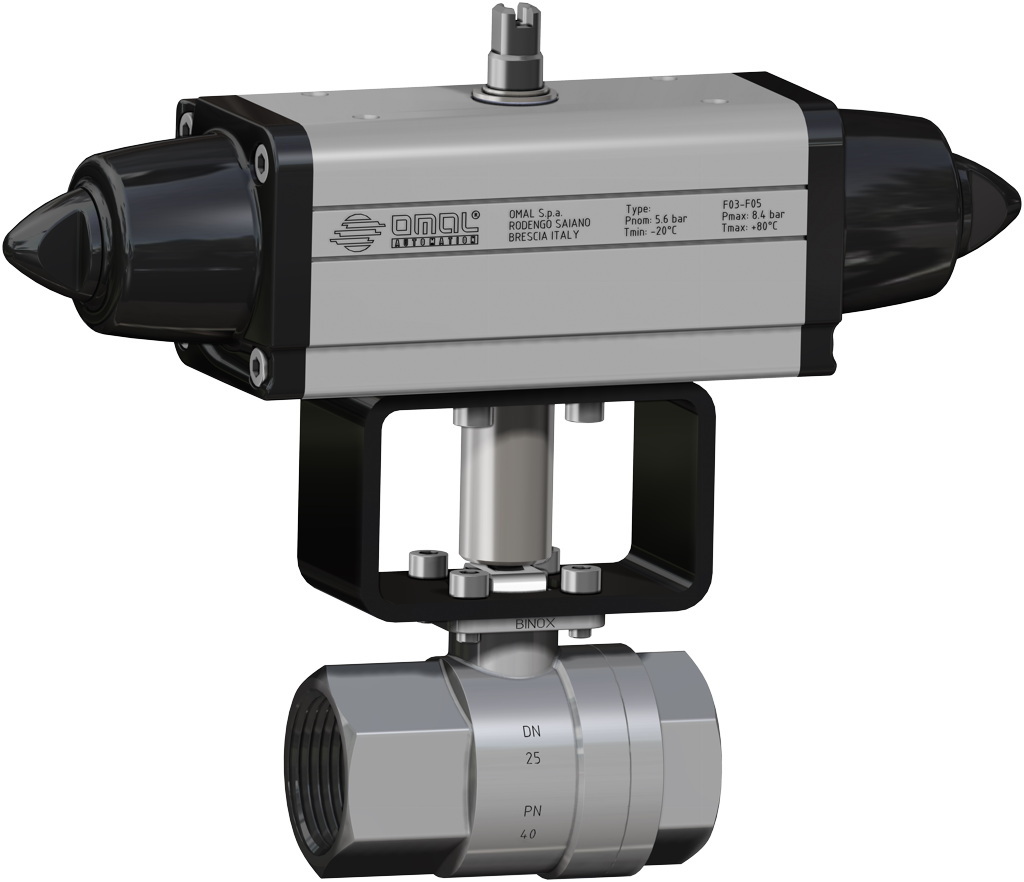

Pneumatische Kogelkraan, 2-weg, RVS, draadaansluiting, gepolijst, enkelwerkende aandrijving (SRN)

  • Aansluiting: Binnendraad
  • Uitvoering: Tweeweg
  • Materiaal: RVS gepolijst
  • Maat: DN10 t/m DN50
  • Druk: PN 40 t/m 100 bar
  • Temperatuur: -20°C t/m +150°C
  • Actuator: Pneumatische enkelwerkend (SRN)
  • Merk: Omal
Artikel Aansluiting Druk Actuator Kogelkraan Hoogte Lengte Montage
SG401H003 DN10 3/8” 100 bar SRN0015401S V401H203 151.2 233.2 KCNAAHD5261
SG401H004 DN15 1/2” 100 bar SRN0015401S V401H204 154 233.2 KCNAAHD5261
SG401H005 DN20 3/4” 100 bar SRN0030402S V401H205 181.7 258.8 KCNACHD5263
SG401H006 DN25 1” 100 bar SRN0030402S V401H206 185.7 258.8 KCNACHD5263
SG401H007 DN32 1.1/4" 63 bar SRN0053401S V401H207 207.3 304.2 KCNBCHD5265
SG401H008 DN40 1.1/2" 63 bar SRN0060401S V401H208 217.3 338.5 KCNBCHD5265
SG401H009 DN50 2” 40 bar SRN0090401S V401H209 255.4 393.7 KCNCDHD5606
Omal produktinformatie
